Poppy Cottage

This very large, ‘T’ shaped, three bedroom home offers extra space in throughout and plenty of storage. There is an enormous triple aspect open plan living area with double patio doors which includes kitchen and dining. There is an unusually large utility with wc which gives access to the integral garage. The generous family bathroom incorporates a recessed shower. The bedroom wing is served by its own hall and all bedrooms feature built-in wardrobes. The master bedroom has an en-suite shower room in addition.

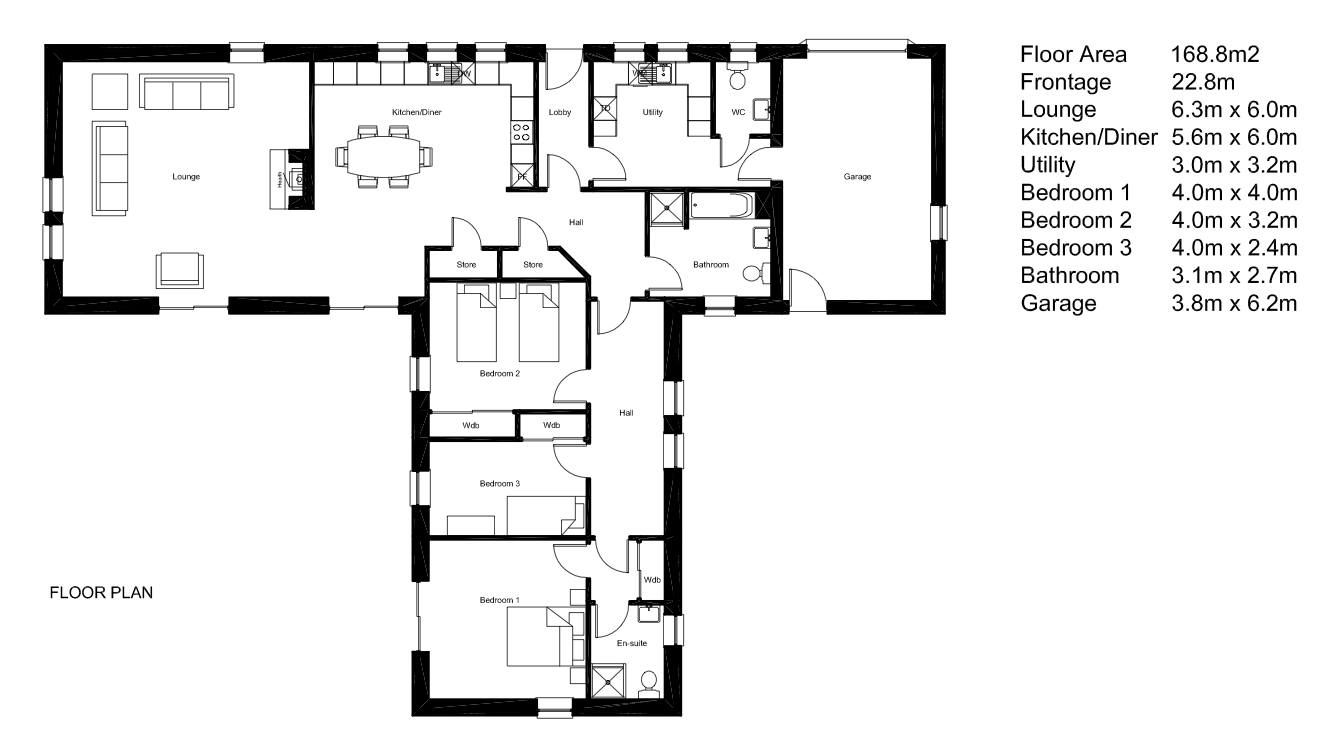

Floor Plan
Floor Plan (Click to view)

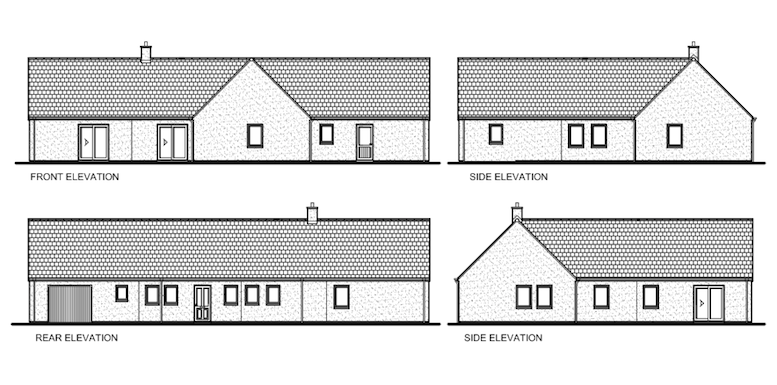

Front, Rear & Side Elevations (Click to view)

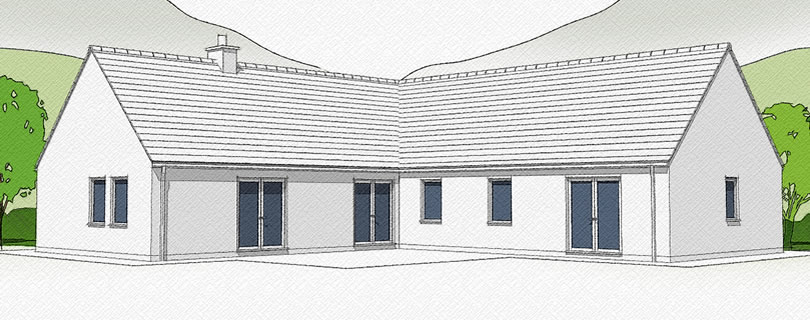

Rear Elevations
Approximate Floor Area 168.8 m²
Bedrooms 3
Basic Kit
Cost
£52,660 *
Pricing Notes
Frontage 22.8m
Lounge 6.3m x 6.0m
Kitchen/Diner 5.6m x 6.0m
Utility 3.0m x 3.2m
Bedroom 1 4.0m x 4.0m
Bedroom 2 4.0m x 3.2m
Bedroom 3 4.0m x 2.4m
Bathroom 3.1m x 2.7m
Garage 3.8m x 6.2m

Pricing Notes

  1. All prices exclude delivery to site which will be charged at cost.
  2. Cottage designs marked with * include integral Garage but this is not included in the floor area.
  3. Prices include white uPVC windows / external doors and PVC roofline (fascias and soffits).
  4. Prices include structural calculations and detailed specifications for the timber frame only.
  5. Prices include the SAP calculations required for Building Regulation / Warrant applications.
  6. Prices exclude VAT which will be charged at the prevailing rate on kit supply only contracts.
  7. Self-builders may reclaim the VAT charged from HMRC - for further details go to HMRC website.
  8. Where kit erection or full build services are employed VAT is not chargeable on the kit supply.
  9. Floor areas are approximate gross internal (measured inside external walls and over partitions).
